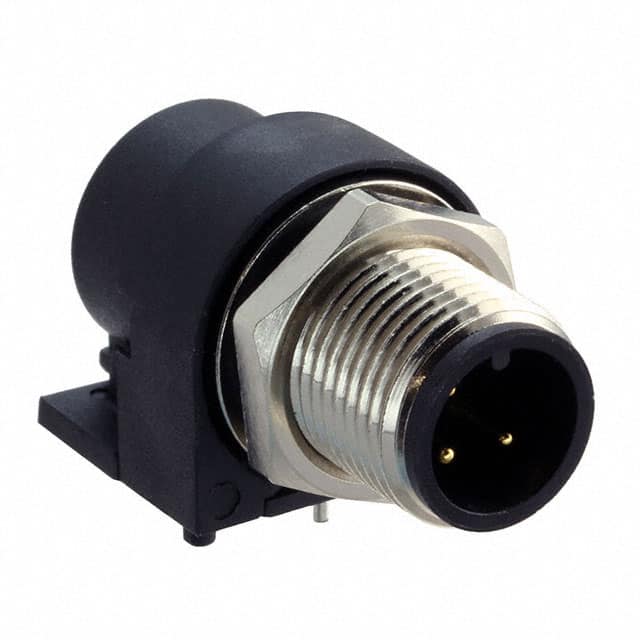

861-003-113R004 product image

Image shown for reference. Confirm specifications in the datasheet.

Product details

861-003-113R004

Availability on request

Manufacturer: NorComp Inc.
Category: Circular Connector Assemblies
Package: Tray

Description

3 Position Circular Connector Receptacle, Male Pins Solder

Datasheet View datasheet

Specifications

Applications: Industrial, Medical
Backshell Material, Plating: -
Base Product Number: 861-003
Cable Opening: -
Color: Black, Silver
Connector Type: Receptacle, Male Pins
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Material: Brass
Current Rating (Amps): 4A
Fastening Type: Threaded
Features: Board Guide
Ingress Protection: IP67 - Dust Tight, Waterproof
Insert Material: Polybutylene Terephthalate (PBT)
Material Flammability Rating: UL94 V-0
Mfr: NorComp Inc.
Mounting Feature: -
Mounting Type: Panel Mount, Through Hole, Right Angle
Number of Positions: 3
Operating Temperature: -40°C ~ 85°C
Orientation: A
Package: Tray
Primary Material: Metal
Series: VULCON™
Shell Finish: Nickel
Shell Material: Brass
Shell Size - Insert: M12-3
Shell Size, MIL: -
Shielding: Shielded
Termination: Solder
Voltage Rating: 250V
