NCP11187A100PG product image

Image shown for reference only. Refer to the product datasheet for exact specifications.

Product details

NCP11187A100PG

Availability on request

Manufacturer
onsemi
Category
AC DC Converters, Offline Switches
Package
Not provided

Description

Converter Offline Flyback Topology 100kHz 7-PDIP

Datasheet View datasheet (opens in a new window)
Specifications
Base Product Number
NCP11187
Control Features
Soft Start
Duty Cycle
80%
Fault Protection
Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
Frequency - Switching
100kHz
Internal Switch(s)
Yes
Mfr
onsemi
Mounting Type
Through Hole
Operating Temperature
-40°C ~ 150°C (TJ)
Output Isolation
Isolated
Package
Tube
Package / Case
8-DIP (0.300", 7.62mm), 7 Leads
Power (Watts)
60 W
Series
mWSaver™
Supplier Device Package
7-PDIP
Topology
Flyback
Voltage - Breakdown
800V
Voltage - Start Up
2.1 V
Voltage - Supply (Vcc/Vdd)
7.8V ~ 16V

Continue browsing

These products share the same category. Suitability must be confirmed independently.

AP3101P-E1 package illustration

Package illustration, not an exact-model photograph. Image shown for reference only. Refer to the product datasheet for exact specifications.

Diodes Incorporated

AP3101P-E1

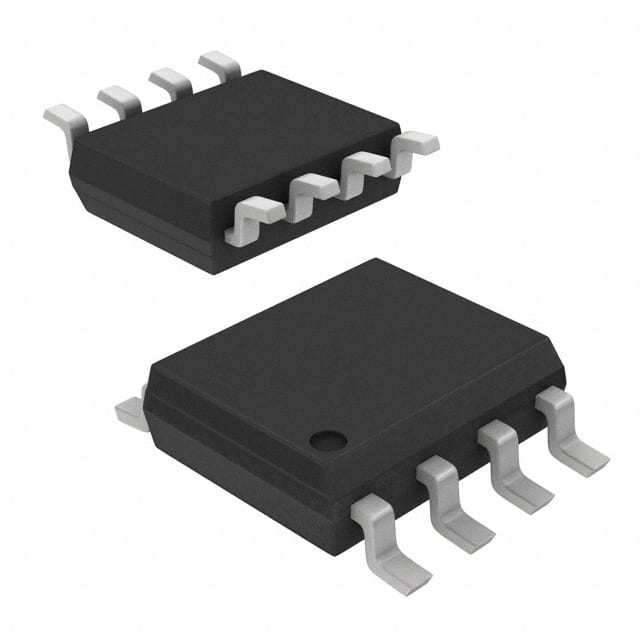

AP3102M-G1 package illustration
