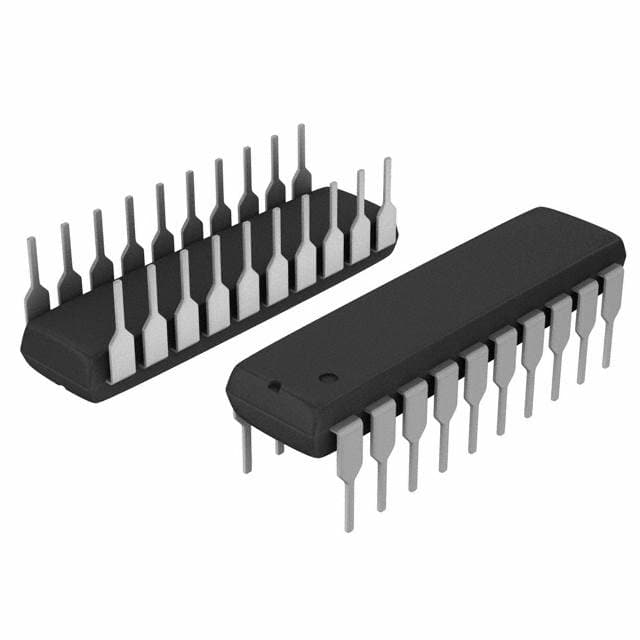

74HCT7540N112 package illustration

Package illustration. Image shown for reference. Confirm specifications in the datasheet.

Product details

74HCT7540N112

Availability on request

Manufacturer: NXP USA Inc.
Category: Buffers, Drivers, Receivers, Transceivers
Package: 20-DIP

Description

Buffer, Inverting 1 Element 8 Bit per Element 3-State Output 20-DIP

Datasheet Not provided

Specifications

Base Product Number: 74HCT7540
Current - Output High, Low: 6mA, 6mA
Input Type: -
Logic Type: Buffer, Inverting
Mfr: NXP USA Inc.
Mounting Type: Through Hole
Number of Bits per Element: 8
Number of Elements: 1
Operating Temperature: -40°C ~ 125°C (TA)
Output Type: 3-State
Package: Bulk
Package / Case: 20-DIP (0.300", 7.62mm)
Series: 74HCT
Supplier Device Package: 20-DIP
Voltage - Supply: 4.5V ~ 5.5V
