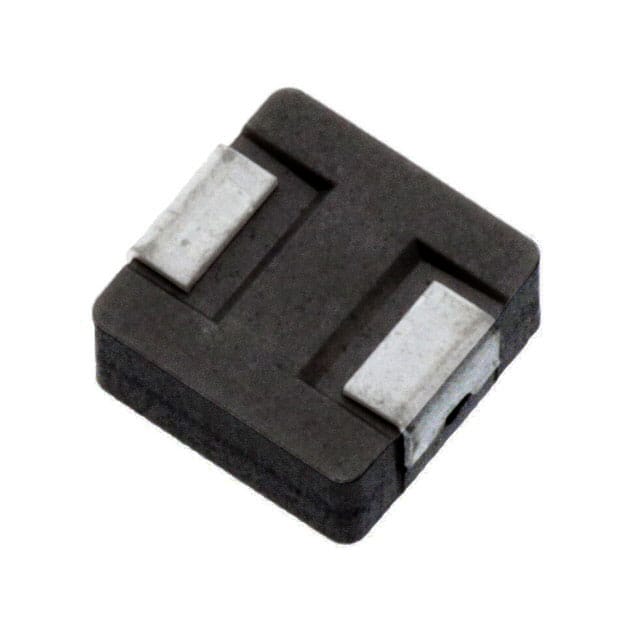

0640CDMCCDS-100MC product image

Image shown for reference. Confirm specifications in the datasheet.

Product details

0640CDMCCDS-100MC

Availability on request

Manufacturer: Sumida America Components Inc.
Category: Fixed Inductors
Package: Tape & Reel (TR), Cut Tape (CT)

Description

10 µH Shielded Molded Inductor 4.2 A 68.5mOhm Max Nonstandard

Datasheet View datasheet

Specifications

Current - Saturation (Isat): 5.2A
Current Rating (Amps): 4.2 A
DC Resistance (DCR): 68.5mOhm Max
Features: -
Frequency - Self Resonant: -
Height - Seated (Max): 0.157" (4.00mm)
Inductance: 10 µH
Inductance Frequency - Test: 100 kHz
Material - Core: Metal
Mfr: Sumida America Components Inc.
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 125°C
Package: Tape & Reel (TR), Cut Tape (CT)
Package / Case: Nonstandard
Q @ Freq: -
Ratings: -
Series: 0640CDMCC/DS
Shielding: Shielded
Size / Dimension: 0.280" L x 0.260" W (7.10mm x 6.60mm)
Supplier Device Package: -
Tolerance: ±20%
Type: Molded
